EV Charging Connector | IEC Type-2

EV Charging Connector | IEC Type-2

Item Number,VCCI2A013B0 ,VCCI2A013C0,VCCI2A020B0,VCCI2A020C0,VCCI2A032B0,VCCI2A032C0,VCCI2A070B0,VCCICA020B0

VCCICA032B0,VCCICA032C0,VCCICA063C0

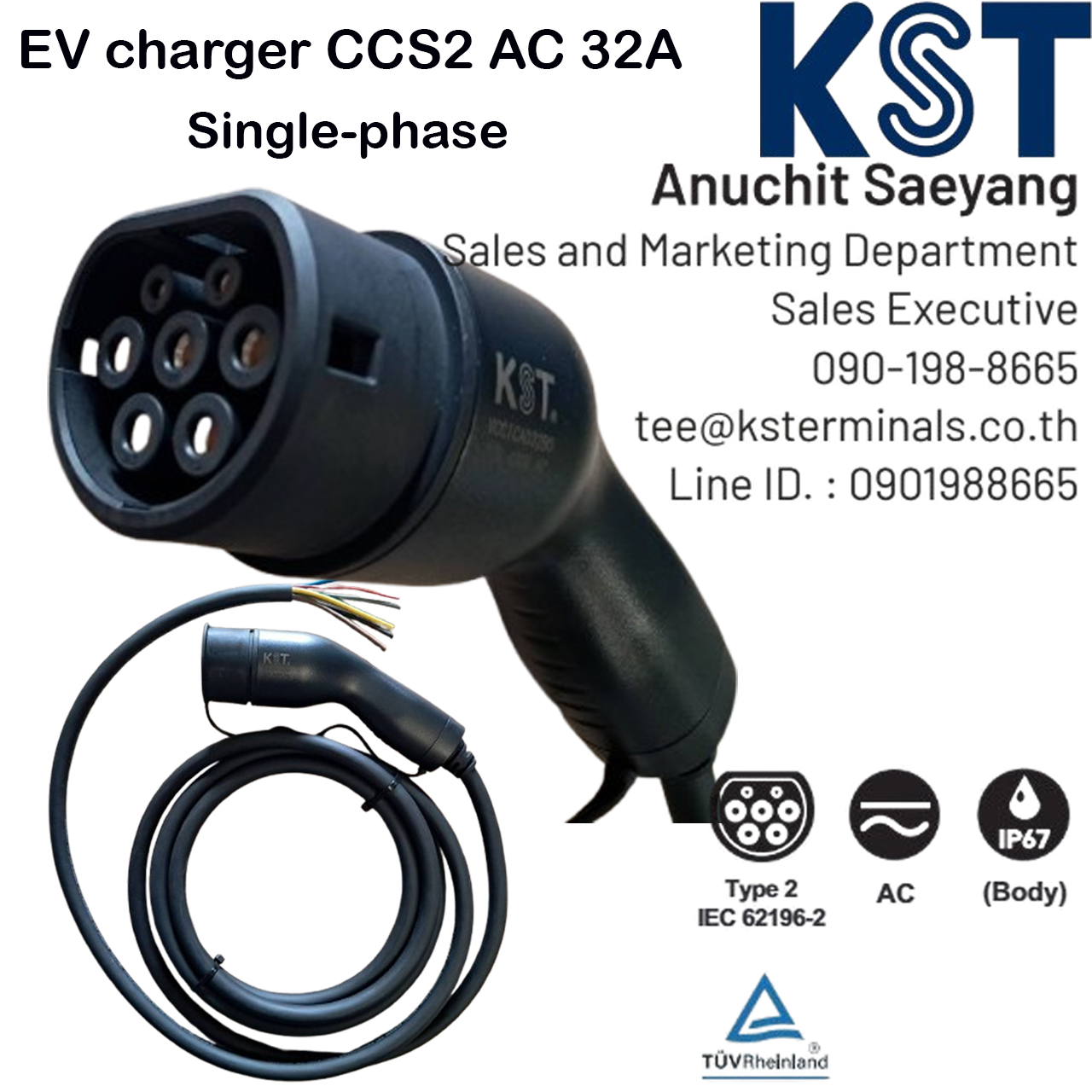

The VCCIxxxxxCO series of EV Charging Connectors are IEC 62196 (Type 2) mode 3 EVSE to

vehicle connectors.

• Provides low contact resistance and a minimum of 10,000 mating cycles.

• Conforms to the IEC 62196-2 standard, and supports single-phase and three-phase

charging which is suitable for Europe, India and Thailand.

• Ergonomic, rugged, unibody design provides optimal comfort and intuitive handling.

• Complies with TUV safety standards ensuring a high level of protection, even in severe

environments.

• Products passed 5000N driveover test.

Battery Electric Vehicle (BEV), PHEV, Charging Stations, Workplace Charging Stations, Portable EV

Connector Cables and Residential Wall-mounted Chargers.

IEC 61851:

• Charging Mode 3, Case C

Phase:

Single-phase , 13A, 20A, 32A, 70A    250V  AC

Three-phase 20A, 32A, 63A   480V AC

IP(Mated) IP44

IP(Body) IP67
